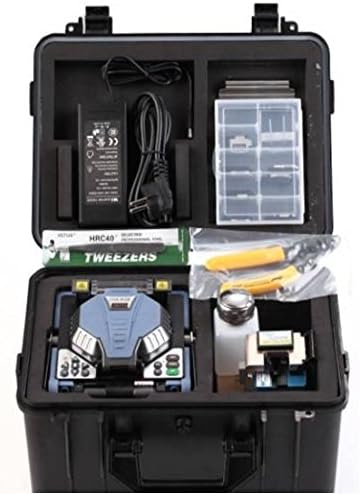

RY-F600P Fusion Splicer With Fiber Holders Digital fusion splicer with automatic focus function Fiber core can be display clearly Single X or Y view and X & Y view simultaneously Features Digital fusion splicer with automatic focus function Fiber core can be display clearly Single X or Y view and X & Y view simultaneously Auto detect cleaved endface fault Display fiber cleaved and offset angle Display core and clad offset 5.6 inch TFT color LCD monitor with clear digital image display USB & VGAinterface Software upgrade via USB interface Specefications Model RY-F600P with Fiber Holders Applicable fibers SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) Fiber cleaved length 10 ~16mm (Coating diameter Fiber diameter Cladding diameter:80 ~150μm , Coating diameter:100 ~1000μm Auto focusing Available Fiber aligning method Core aligning, clad aligning, manual aligning Average splice loss 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB(NZDS) Splicing time Typical 9 sec,with standard SM fiber Heating time Typical 36 sec Applicable sleeves 60mm, 40mm and a series of micro sleeves Tension test 2N(option) Electrode life 5000 Battery capacity Typical 400 cycles (splice and heat) Monitor 5.1 inch TFT color monitor Terminal USB 1.1 and VGA , software upgrade via USB interface Operating condition 0 ~ 5000m above sea level, 0 ~ 95%RH
