LCD 5/10/15/20A Autoswitch Solar Panel Battery Regulator Charge Controller 12V/24V

Description

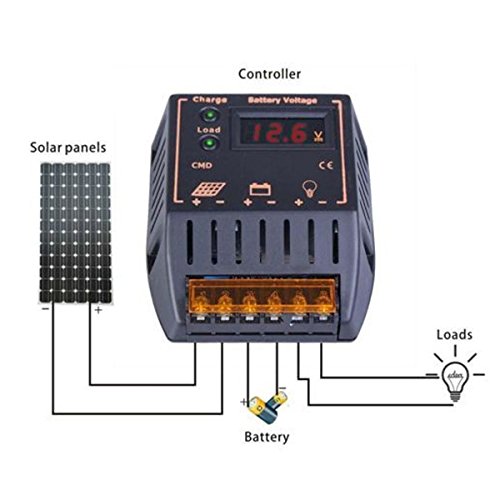

Description : LCD 5/10/15/20A Autoswitch Solar Panel Battery Regulator Charge Controller 12V/24V Features : For 6 Protection Situation ~ Over-load protection Short circuit protection Protection from the lightning strike Under-voltage protection Over-charging protection Reverse polarity protection 1. Installation Instructions : Open the top cover of controller and connect the wire with terminals as the diagram on the top cover of it. 1.Connect the "+","-" poles of the battery to the corresponding ports of controller (the third and the fourth one from left). 2.Connect the "+","-" poles of the solar pannel to the corresponding ports of controller (the first and the second one from left). 3.Connect the "+","-" poles of the load to the corresponding ports of controller (the fifth and the sixth one from left). 2. Status instructions : The charge indicator : While charging, the charge indicator will be green light ON. When the battery indicator is flashing uninterruptedly, it means the battery is full charge and the system enters into intelligent protective charging. Battery voltage display screen : the battery voltage will display only when the battery power is normal. Battery under voltage display: when the battery is in the state of under voltage , (in the 12V system the battery voltage is less than 12V, in the 24V system the battery voltage is less than20V), a middle cross of the digital tube flickers as is shows in the figure. Specifications : Rated charge current 5/10/15/20A Rated discharge current 5/10/15/20A Over load, short circuit protection 1.5 times by the rated current Short circuit recovery time 10s Open circuit voltage of solar panel 55V No load loss 0.05W Over voltage protection 15V, 24V Float charge voltage 14V, 24V Discharge recovery voltage 12V, 24V Over discharge voltage 10.5V, 24V Control mode software intelligent control Working te
