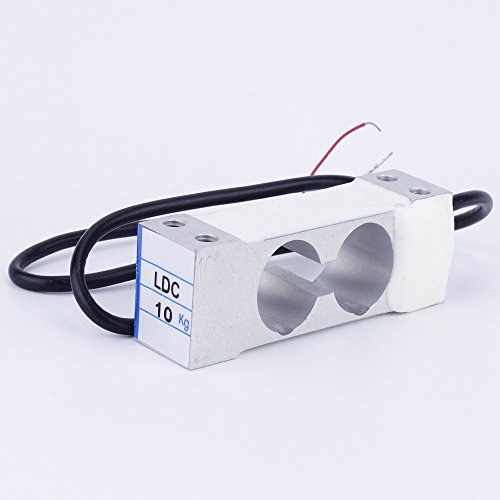

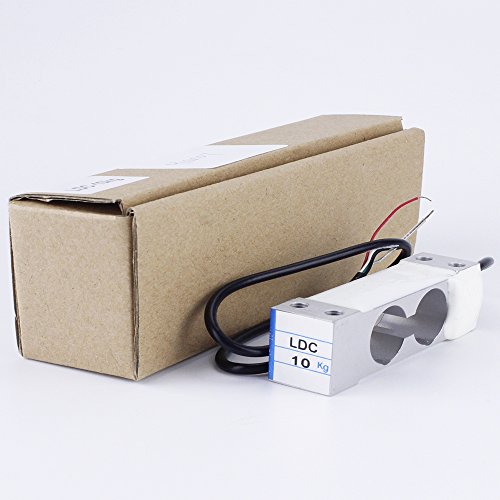

Lotoclub 10KG 22lb Single Point Aluminium Weighing Load Cell Sensor Pressure Transducer For Industry And Machinery/Electronic Scale

Description

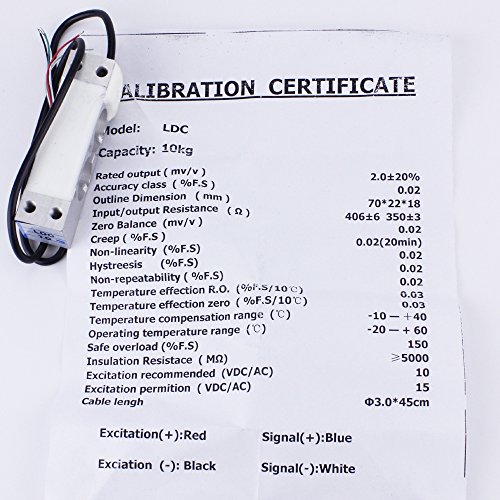

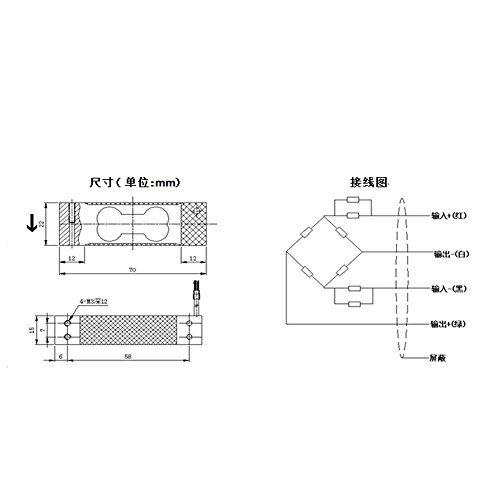

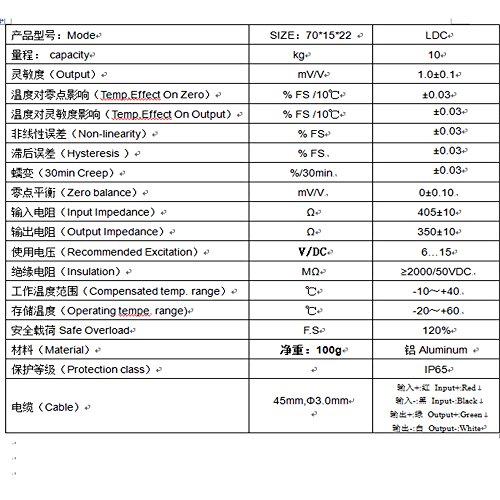

Load cell is a type of transducer that converts physical force into measurable, quantifiable electric energy. Because of the various types of load cells needed to operate different pieces of machinery, there are many configurations, but the most popular and the focus of this article is the strain gauge variety. Through a mechanical arrangement, the force being sensed deforms a strain gauge. The strain gauge measures the deformation (strain) as a change in electrical resistance, which is a measure of the strain and hence the applied forces. A load cell usually consists of four strain gauges in a Wheatstone bridge configuration. Load cells of one strain gauge (quarter bridge) or two strain gauges (half bridge) are also available. Because of the various types of load cells needed to operate different pieces of machinery, there are many configurations, but the most popular and the focus of this article is the strain gauge variety. SIZE：70*15*22mm Capacity：10kg Output: 1.0±0.1 mV/V Temp,Effect On Zero: ±0.03% FS /10℃ Temp,Effect On Output: ±0.03% FS /10℃ Non-linearity: ±0.03% FS Hysteresis: ±0.03% FS 30min Creep: ±0.03%/30min Zero balance: ±2%F.S Input Impedance: 405±10Ω Output Impedance: 350±10 Recommended Excitation: 6...15 V/DC Insulation: ≥2000/50VDC Compensated temp. range: -10～+40℃ Operating tempe. Range: -20～+60℃ Safe Overload: 120% F.S Material: Aluminum Protection class: IP65 Cable: 450mm,Ф3.0mm Input EX+:Red Input EX-:Black Output Sig+:Green Output Sig-:White
