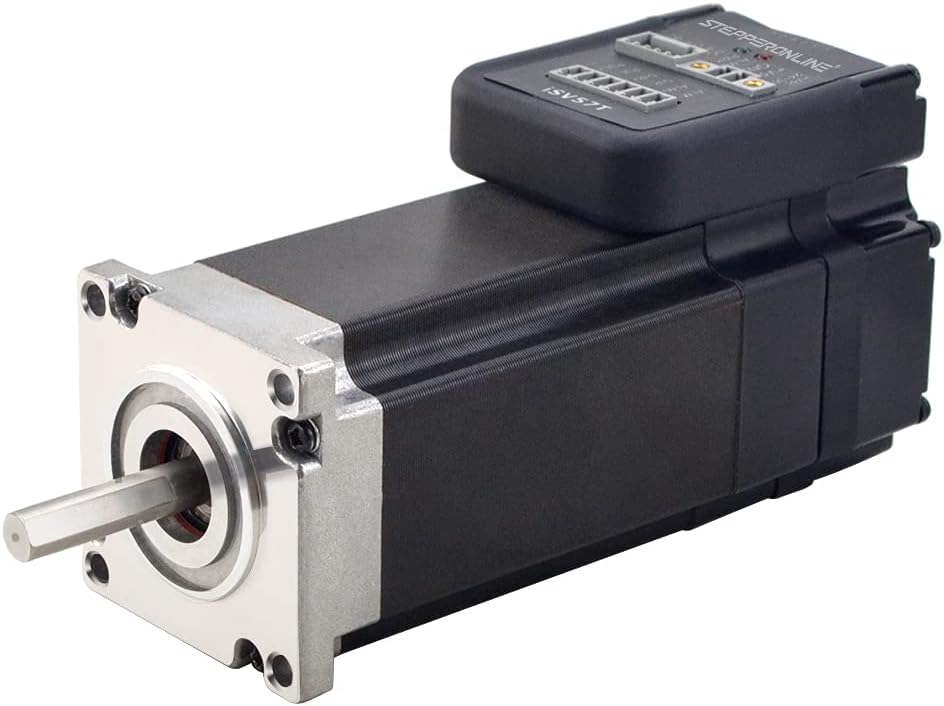

STEPPERONLINE Nema 23 Integrated Easy Servo Motor 180w 3000rpm 0.6nm (84.98oz. in) 20-50vdc Brushless Dc

Description

ISV57T-180 integrated servo motor is a 57mm frame size brushless motor integrated with a 16 bit encoder and a servo drive. At very compact size and with all components integrated, the ISV57T-180 can save mounting space, eliminate encoder connection & motor wiring time, reduce interference, and cut/reduce cable and labor costs. Integrated compact size for saving mounting space & setup time, and reducing electrical interference. Key Features: Input voltage 20-50VDC, output peak current 0-6A Step & direction command input for position control Compatible mounting size with stepper motor Smooth motor movement and excellent respond time Isolated control inputs of Pulse, Direction In-position and fault outputs to external motion controllers for complete system controls Over voltage, over-current, and position-error protection Driver Specifications: Output Peak Current: 0~6A Input Voltage: +20~50VDC (Typical 36VDC) Logic Signal Current: 7~16mA (Typical 10mA) Pulse Input Frequency: 0~300kHz Pulse Voltage: 5v(Connect a 2K ohm resistor in series, if it is 24V) Isolation Resistance: 100M, Electrical Specifications: Manufacturer Part Number: ISV57T-180 Rated Power(W): 180 Rated Torque(Nm): 0.6 (84.98oz. in) Peak Torque(Nm): 1.5 (212.46oz. in) Rated Speed(rpm): 3000 Peak Speed(rpm): 4000 Rated Voltage(Vdc): 36 Weight(kg): 1.54 Physical Specifications: Frame Size: 57 x 57 mm Body Length: 148 mm Shaft Diameter: 8 mm D-cut Shaft Length: 27 mm Shaft Length: 33 mm.
