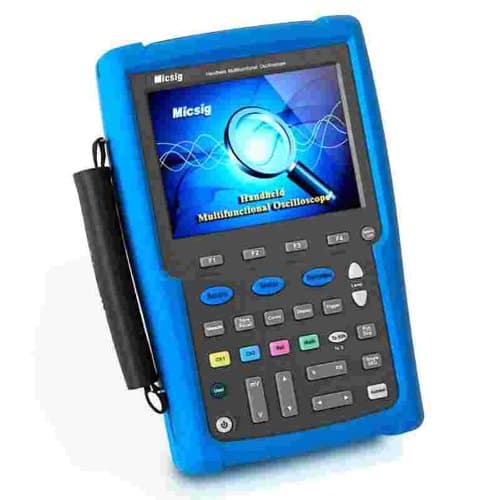

Micsig MS210T allows moving the waveform and zooming in and out in three ways: using the buttons, using the scroll wheel or using touch screen. The Micsig software, ScopeSuite, has functions including updating, real time control, measurement, storage, dynamic display, record and data analysis. The MS210T has a 5.7" TFT LCD touch screen with 640×480 resolution. Features Bandwidth 100 MHz Rise Time ≤3.5 ns Real time sampling rate single channel: 1 GSa/s Dual channels: 500 MSa/s 3 control modes: touch, button, scroll wheel 240Kpts memory depth 640*480 screen resolution 31 auto measurements Cursor measurements 3 record modes: multimeter, oscilloscope, and oscilloscope waveform multimeter is capable of conducting 10 measurements and tests such as AC/DC voltage, current, resistance, etc. ScopeSuite software Package Contents Micsig MS210T Handheld Digital Oscilloscope — 1 pc. Power Adapter — 1 pc. 10x Oscilloscope Probe — 1 set Multimeter Probe — 1 set USB Cable — 1 pc. Li-ion Battery — 1 pc. CD / ScopeSuite Software — 1 pc.
