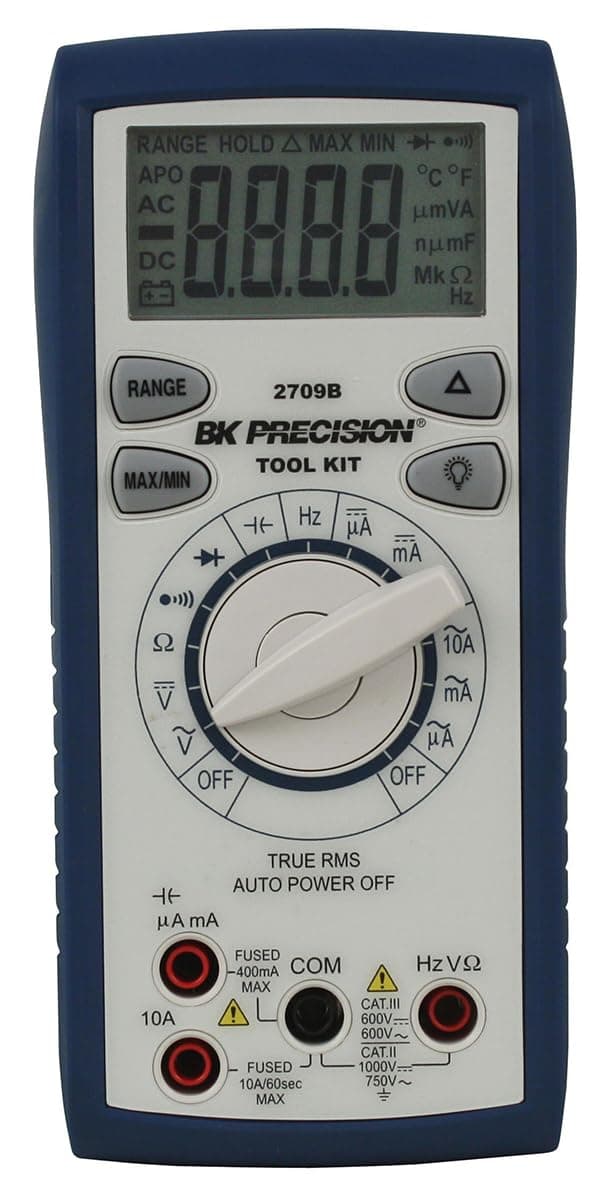

The BK Precision 2709B digital multimeter (also known as a
multitester) is a true RMS, auto-ranging meter for measuring
current, voltage, resistance, capacitance, and frequency in
electrical testing applications. The meter comes with a set of
detachable test leads. An audible continuity sensor confirms a
circuit conducts electricity, and a diode test detects proper
functioning of a circuit’s diodes. The LCD is backlit for
readability in low light. It displays the present measurement or
the highest or lowest reading in a session, for tracking sudden
changes in readings. The relative mode stores a reading in memory
to use as a zero point for subsequent readings so that multiple
readings can be compared. An alarm sounds when the test leads are
connected to the wrong jack for the measurement being taken. The
unit automatically turns off after 30 minutes of nonuse to
conserve battery life, and a low-battery indicator signals when
the meter's batteries need to be replaced. A magnetic strap is
included for hanging the meter from a metal door or surface for
hands-free use.
This true RMS (root mean square) meter provides accurate readings
when measuring linear loads, such as standard induction motors
and incandescent lights, where the current or voltage has an
undistorted waveform, or nonlinear loads, such as electronic
devices or motors, where the current or voltage has a distorted
waveform. When turned on, the meter is in auto-ranging mode and
automatically selects the correct operating range for the
property being measured. It can be switched to manual-ranging
mode, which allows the operator to choose the appropriate
operating range. The LCD has a 6,600-count resolution, meaning it
can display up to 6,599 units (3-3/4 digits) before the operating
range needs to be changed. It meets International
Electrotechnical Commission (IEC) safety standard 61010 and is
certified for Category II installations up to 1,000V, which
covers large household appliances and devices connected to a
fixed power supply (such as refrigerators and air conditioners),
and Category III installations up to 600V, which covers items
used with enclosed building circuit installations (such as
service panel parts, branch circuits, and fixed installations
that are connected directly to a building's AC power supply).
Specifications
--------------
Maximum alternating current (AC) input10 ampMaximum direct
current (DC) input10 ampMaximum AC voltage input750 volts
(V)Maximum DC voltage input1,000VMaximum resistance detected66
megaohmsMaximum capacitance detected66 millifarads (mF)Maximum
frequency detected66 megahertz (MHz)Power supply9V battery (one,
installed)Standards metEuropean Conformity (CE); International
Electrotechnical Commission (IEC) safety standard 61010-1;
European Union EMC (EN) EN61326Weight285 g/10 oz.Dimensions165 x
78 x 42.5 mm/6.5 x 3.1 x 1.7 inches (H x W x D)
H is height, the vertical distance from the lowest to highest
point; W is width, the horizontal distance from left to right; D
is depth, the horizontal distance from front to back.
Multitesters (also called multimeters) are electrical test meters
that measure multiple properties of an electrical circuit, such
as current, voltage, resistance, capacitance, and continuity.
Available in handheld or benchtop models, multitesters diagnose
electrical problems in electrical equipment, wiring, and power
supplies. A variety of probes, clamps, and leads can be used to
connect the meter to a circuit or device. Multitesters display
information either in analog or digital form. Factors that
influence meter choice include the electrical properties to be
measured, the anticipated range of results, and the desired level
of protection against transient voltages. Safety ratings are
based on the International Electrotechnical Commission's (IEC)
standards for low-voltage test equipment. IEC 61010 delineates
four overvoltage installation categories. In general, a meter
with a category IV rating will provide more protection against
transient voltages than a meter with a lower category rating.
BK Precision manufactures test and measurement instruments for
research and development, production-line testing, and electronic
field service applications. The company, founded in 1951, is
headquartered in Yorba Linda, CA. It meets International
Organization for Standardization (ISO) standard 9001:2008 and is
compliant with Restriction of Hazardous Substances (RoHS) and
waste electronic and electrical equipment (WEEE) directives.
What's in the Box?
------------------
* BK Precision 2709B true RMS digital multimeter
* (1) Set test leads
* 9V battery (installed)
* Spare fuse
* Magnetic hanging strap
* Instructions
- Digital multimeter measures current, voltage, resistance, capacitance, and frequency.
- True RMS (root mean square) meter provides accurate readings when measuring linear or nonlinear loads where the current or voltage has an undistorted or distorted waveform.
- Audible continuity sensor confirms a circuit conducts electricity, and diode test detects proper functioning of a circuit’s diodes.
- Backlit LCD is readable in low light and displays present measurement or the maximum and minimum values for the session.
- Meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category II installations up to 1,000V and Category III installations up to 600V.
