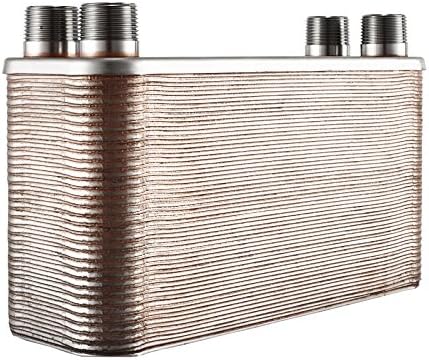

The 60-Plate Brazed Plate Heat Exchangers are used for transferring heat from one hot water source to another without mixing the two different water sources. For example when hooking up a non pressurized furnace to an indoor boiler or for heating cold water before it goes into the hot water heater to eliminate the need for fuel to power your water heater. They are good for preheating water to water heaters and for transferring heat from an outdoor furnace or solar system to an indoor boiler. Other uses for them include transferring heat from hot oil or cooling milk off a milk pipeline. Features: Nice exterior Small size and no space occupation Increases heat transfer area Improves efficiency Compact design More flexibility in installation Heavy-gauge top and bottom plates Protect the unit from corrosion and accidental damage Ideal for liquid to liquid heat transfer applications Item Specifications: Type: Brazed plate heat exchanger Plate material: AISI 316L stainless steel Brazing material: 99.9% pure copper Plate dimensions: 4.25 x 12 inch Volume per channel: 0.05 L Inlet/Outlet sizes: 1 inch male NPT(MPT) threaded Max pressure: 652 lbs per sq in Test pressure: 971 lbs per sq in Min operating temperature: -256 ℉ (-160 ℃) Max operating temperature: 437 ℉ (225 ℃) Package size: 13 x 5 x 7 inch Weight: 19.8 lbs Package Content: 1 x Set Of 60-Plate Brazed Plate Exchanger 1 x Product Manua
