Description
- It can drive four DC motors or two step motors at the same time
- When using 5V power to drive the motor, it can drive 4 5V DC motors at the same time.
- When the motor is driven by an adjustable power supply, two 1.25V-6.45V DC motors can be driven at the same time (the external power supply needs 9V )
- Dual bridge driver chip L293D: 4 Road H bridge, each road bridge output current of 600 mA, the peak current up to 1.2A
- Adjustable potentiometer: for adjusting the output voltage of ADJ (adjustable motor power)

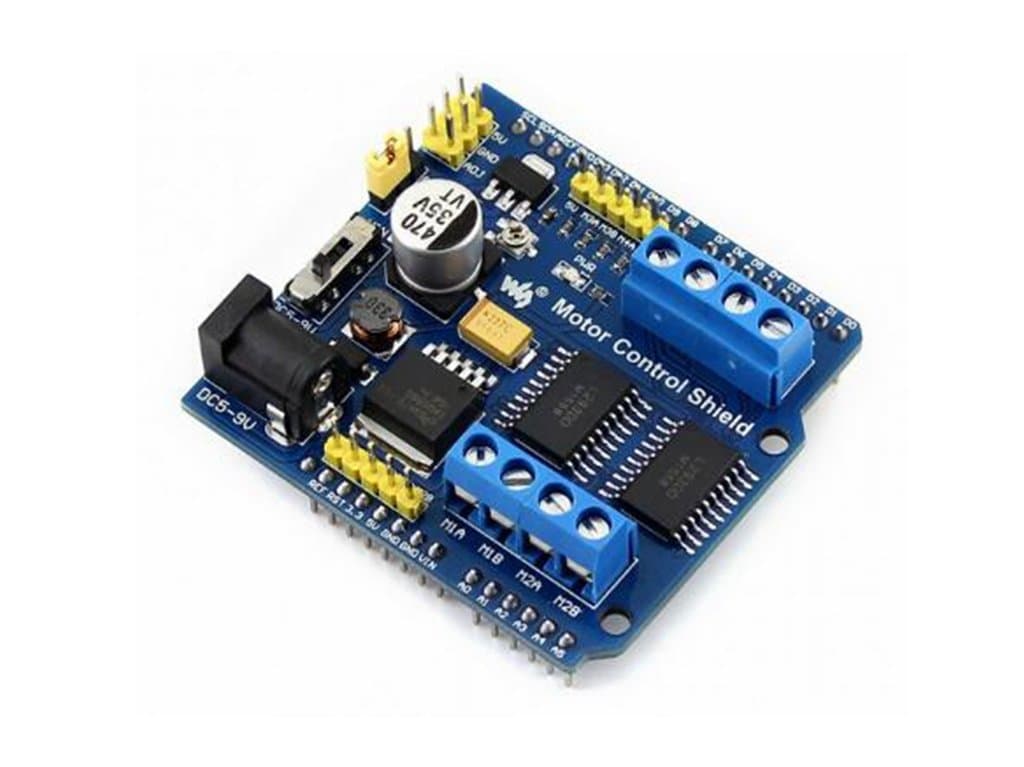

Overview This is an Arduino motor control shield board which is capable of driving 4 DC motors or 2 stepping motors at one time. Specification -M_PWR configuration : connects M_PWR (motor power) to 5V or ADJ -L293D : dual H-bridge driver -LM2596-5.0 : onboard linear switching regulator with 5V output -Weight: 0.031 kg Shipping List -Motor Control Shield *1 -Copper heat sinks *2
