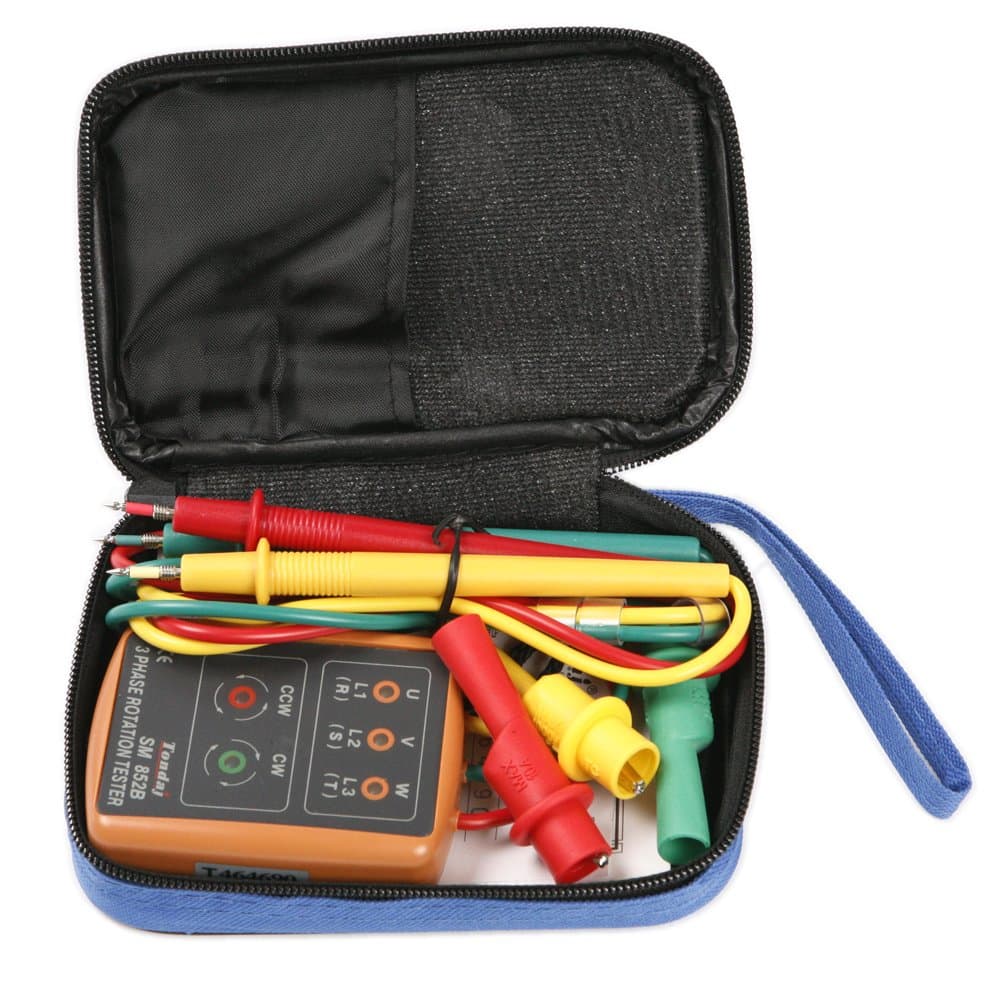

ATOPLEE 3 Phase Sequence Presence Rotation Tester Indicator Detector Meter with LED and Buzzer 60V~600V (3 Phase AC)

ATOPLEE 3 Phase Sequence Presence Rotation Tester Indicator Detector Meter with LED and Buzzer 60V~600V (3 Phase AC)

Q: Will this work on the output of a VFD?

Matthew, a vfd is a Variable Frequency Drive. they are used for phase shifting and/or voltage shifting. my father uses one to convert his 220 single phase to 480 3 phase for his mill in his home garage.

Q: Misplaced instruction. what color lead goes on line 1, line 2 and line 3? thanks

It actually doesn't matter as long as the phase sequence is right. Convention identifies each of the 3 leads as L1, L2, and L3. Your equipment will have terminals labeled as L1, L2, and L3. You would assume L1 goes to L1, L2 to L2 and L3 to L3. This is correct. However, you can also connect L1 to L2, L2 to L3 and L3 to L1. Surprise, you can connect L1 to L3, L2 to L1 and L3 to L2. Each of the 3 variations gives the same result and is correct. What does matter is the sequence. Each line will cycle to peak voltage in rotation. Thats why this is a Phase Sequence Rotation Meter. First L1 goes high, then L2, then L3. If you start with L2, then L3 and L1, each goes high in Rotation. Typically, equipment (a motor perhaps) expects to see "Clockwise" Rotation, sometimes called "Right Hand" Rotation. Should you wish to reverse rotation (for a motor) swap any 2 leads and you get "Counter Clockwise" Rotation, sometimes called "Left Hand" Rotation. Sometimes, one of the leads will register a slightly higher voltage to common/ground than the other two leads. This "Hot Leg" assists with starting a motor. Usually you need not pay any attention to this. Your equipment manual will tellyou if you do. Convention will call for the Hot Leg to be L1. So, hook up your tester, without regard to lead color. If It says "CW" rotation you're good. For convenience, call the Yellow lead L1, Green Lead L2 and Red Lead L3. Wire the associated power leads to the terminals designated L1, L2 and L3 on your equipment. You're good to go.

Q: I was just wondering why it will take so long to deliver. My friend purchased the same exact one from Amazon and it came in about 2 days

Supply chain delays, like everything else.

Q: i see the max voltage is listed for 600v will it survive 690 +/- 4% are the leads 1kv rated? i understand that it wont last as long on 690

I never used it on anything more than 480v. Couldn’t tell you if it would survive 690. As far as the leads being 1kv, it doesn’t say. Only states 600v rated.

4.4/5

Product ID: 72427375

Secure Transaction

Details

Brand
ATOPLEE
Power source
Battery
Style
Compact
Colour
['Orange']
Item weight
0.33 Pounds

⚡2000 V/min voltage limit

📏1m test leads for flexible reach

🔊LED & buzzer for clear alerts

Frequently Bought Together

ATOPLEE 3 Phase Sequence Presence Rotation Tester Indicator Detector Meter with LED and Buzzer 60V~600V (3 Phase AC)

Klein Tools ET600 Multimeter, Megohmmeter Insulation Tester, 4000 Ohms Resistance, 125V/250V/500V/1000V, Auto-Ranging TRMS Multimeter

BTMETER BT-6688B Megohmmeter 200 Gig Ohm Digital Insulation Resistance Tester, 500V/1kV/2.5kV/5kV Test Voltage, Auto Ranging, Backlight Display

Description

⚡ Stay ahead of the current—test smarter, not harder!

OPTIMIZED USAGE DURATION - Designed for up to 60 minutes continuous use at 60V AC, balancing performance and durability.
PRECISION VOLTAGE HANDLING - Supports up to 2000 V/min with 4000 V impulse protection for ultimate safety.
ERGONOMIC PORTABLE DESIGN - Compact orange casing with 1-meter leads fits perfectly in your toolkit for on-the-go testing.
WIDE FREQUENCY COMPATIBILITY - Operates seamlessly across 20 Hz to 400 Hz, covering diverse industrial needs.
CLEAR VISUAL AUDIO INDICATORS - Integrated LED and buzzer ensure you never miss a phase sequence alert.

The ATOPLEE 3 Phase Sequence Rotation Tester is a compact, battery-powered device engineered for professionals needing reliable phase detection from 60V to 600V AC. Featuring a robust 2000 V/min voltage limit, wide frequency range (20-400 Hz), and intuitive LED plus buzzer indicators, it ensures precise and safe phase sequence verification with flexible 1-meter test leads. Ideal for millennial managers demanding efficiency and safety in electrical diagnostics.

Specifications

Manufacturer	ATOPLEE
Part Number	12040027001
Package Dimensions	20.2 x 13 x 5.9 cm; 149.69 g
Item model number	12040027001
Colour	['Orange']
Style	Compact
Power Source	Battery Powered
Item Package Quantity	1
Batteries included?	No
Batteries Required?	No
Item Weight	150 g

Have a Question? See What Others Asked

Will this work on the output of a VFD?

Misplaced instruction. what color lead goes on line 1, line 2 and line 3? thanks

I was just wondering why it will take so long to deliver. My friend purchased the same exact one from Amazon and it came in about 2 days

i see the max voltage is listed for 600v will it survive 690 +/- 4% are the leads 1kv rated? i understand that it wont last as long on 690

Reviews

4.4

All from verified purchases

M**M

Worth the money

Excellent bit of kit used it loads for matching phase rotation on generator supplies worth the money

9.08.2020

B**X

neat little meter

As I'm in the UK and a bit rusty on three-phase installations, I put together a little aide-memoir to understand the different phase designations and how the meter leads need to be connected up.UK standard phase rotation is anti-clockwise (RYB), referred to as CCW on meter.Otherwise, the meter helped locate a dead phase (loose connection).

28.01.2021

B**R

Ideal for what I need to prove

Very affordable compared to the professional level meters out there but was only required to ascertain the correct polarity on the incoming supply to a test panel. This simple device has now confirmed that the prewired Ceeform sockets had been incorrectly wired and identified on numerous 5-core 3P, N & E HO7RNF extension leads for 42kW mobile heaters. It's saved a lot of wasted time when delivering equipment to temporary sites knowing that the equipment was delivered with the correct phase rotation from end-to end.

14.02.2021

N**N

Very happy

Very happy with product

3.04.2022
