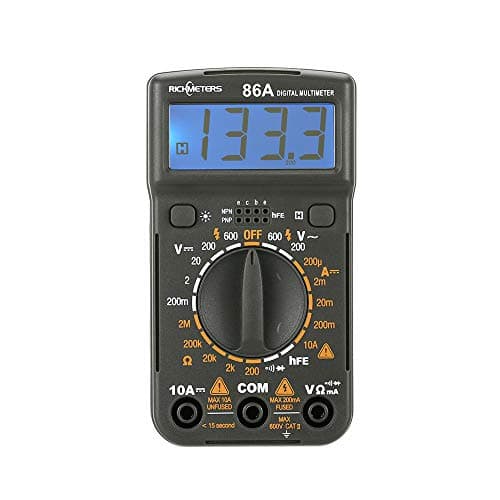

Model Number: RM86AOperating Temperature: 0~40℃Storage Temperature: 10~50℃Operating Humidity: ≤80%RHStorage Humidity: ≤90%RHTemperature coefficient: 0.1x(specified accuracy) / 1℃(<18℃ or >28℃)Measuring Inductance Range: noDisplay Type: Digital DisplayMeasuring Capacitance Range: 0Measuring DC Current Range: 200uA / 2mA / 20mA / 200mA / 10AOverload Protection of DC Current Measuring: mA range is F200mA fast flow fuse; 10A range is unfusedDrop voltage of DC Current Measuring: 200mV for full scale approx.Measuring DC Voltage Range: 200mV / 2V/ 20V / 200V / 600VInput Impedance of DC Voltage Measuring: aprox. 1MΩOverload Protection of DC Voltage Measuring: all of ranges are 600V DC / AC rms except 200mV range is AC 250rmsMeasuring AC Voltage Range: 200V / 600VInput impedance of DC Voltage Measuring: aprox. 450KΩOverload Protection of DC Voltage Measuring: 600V AC rmsFrequency response: 40Hz~400Hz(not specified for >400Hz)Resistance measurement range: 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩOverload Protection of Resistance measuring: 250V DC / AC rmsBattery: 1 * 9V 6F22 battery(Not Included)Screen Max: 1999 countItem Weight: 81.9g / 2.88ozPackage Weight: 142g / 5.01ozItem Size: 10.5 * 6 * 3cm / 4.13 * 2.36 * 1.18inPackage Size: 17 * 10 * 5.5cm / 6.69 * 3.94 * 2.17inPackage list: 1 * Multimeter2 * Test leads1 * User manual
