🔋 Power Your Passion with HiXiMi!

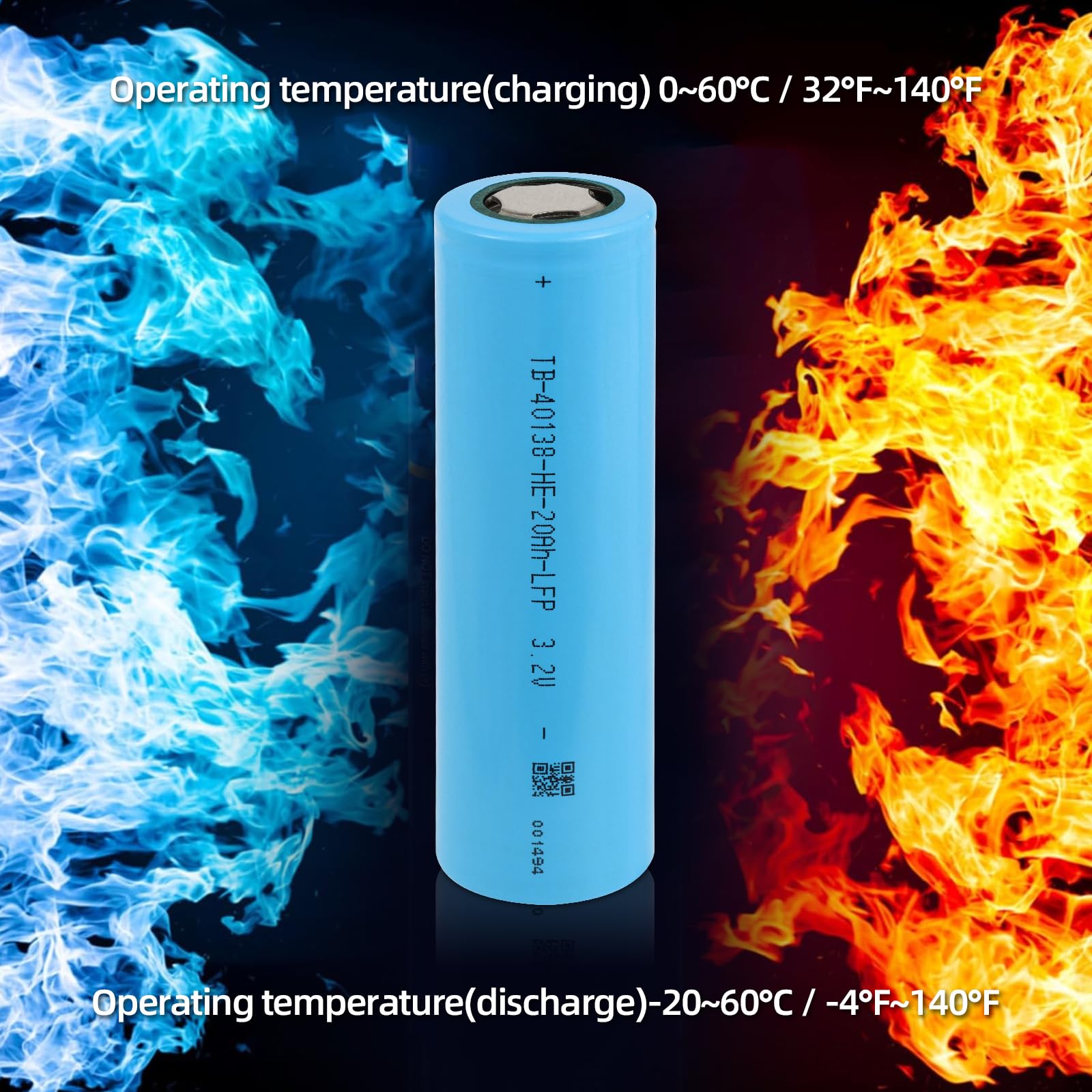

The HiXiMi 3.2V 20Ah LiFePO4 Cell Battery is a high-performance rechargeable lithium iron phosphate battery, designed for a variety of applications including e-bikes and outdoor energy storage. With a maximum continuous discharge of 60A and a wide operating temperature range, this lightweight battery is perfect for both indoor and outdoor use.
Battery Weight | 1680 Grams |
Unit Count | 1 Count |
Battery Cell Type | Lithium-Phosphate |
Recommended Uses For Product | Indoor/Outdoor |
Reusability | Rechargeable |
Battery Capacity | 20000 Milliamp Hours |
Amperage | 20 Amps |
Voltage | 3.2 Volts (DC) |
W**V
Power house
These hold lots of power and it takes heavy power to charge them as well. The have a continuos drain of 60 amps. I have 16 of them for my bike, i am wiring them all in series then using a buck converter inline with the bikes current batteries.Btw, these things easily melt a nickle strip in a direct short. I was using magnets to temporarily hold the nickle strips on, and I goofed up removing the magnets and one magnet slipped over to the other battery causing a dead short. It was a nyodium bar magnet, it fried the magnet and broke it in half. That magnet no longer has pulling power.I have experience building a battery pack from 18650, wow what a difference these monster batteries make. I have 16 of them, be carefull about shorting them out, not for the battery but for whatever metal shorted it will get fried and may burn your hand before you figure out why your hand feels hot.
J**K
BE Careful with spot welding... ouch!
These things are amazing, way more powerful than I expected I have three packs of four cells each making a 12 cell pack. I'm planning on putting them on my ebike and using them for anything else I need 40 volts and a lot of amps for. I made a little mistake holding the nickel strip to trim the proper length and brushed against an extra cell contact which immediately vaporized the strip in my hand going across two fully charged cells. Initial charging seems to indicate very consistent capacity and very similar initial voltage.
H**S
Batteries were as expected very good. Packaged very well.
The batteries were very good and packaged well. All batteries tested at 3.21 volts. I bought four sets to build a bank of batteries but ended up going another Direction and are returning 3 sets while keeping one set to build a 12 volt battery for my radio hobby. The batteries are pretty large but it's not a problem they're very very good batteries. I will upload a small video of the battery that I am building with these cells when I am finished. The four cells that I did keep all charged up nicely and tested a little over 20 amp hours.
A**N
20AH verified
Impressed with these 20AH cells. Manufactured battery pack w/ 4 cells, working very well. Tested pack at C/4 rate and results show a real 20AH capacity.
A**E
Solid Build Quality, Equal Voltage and Includes Brackets

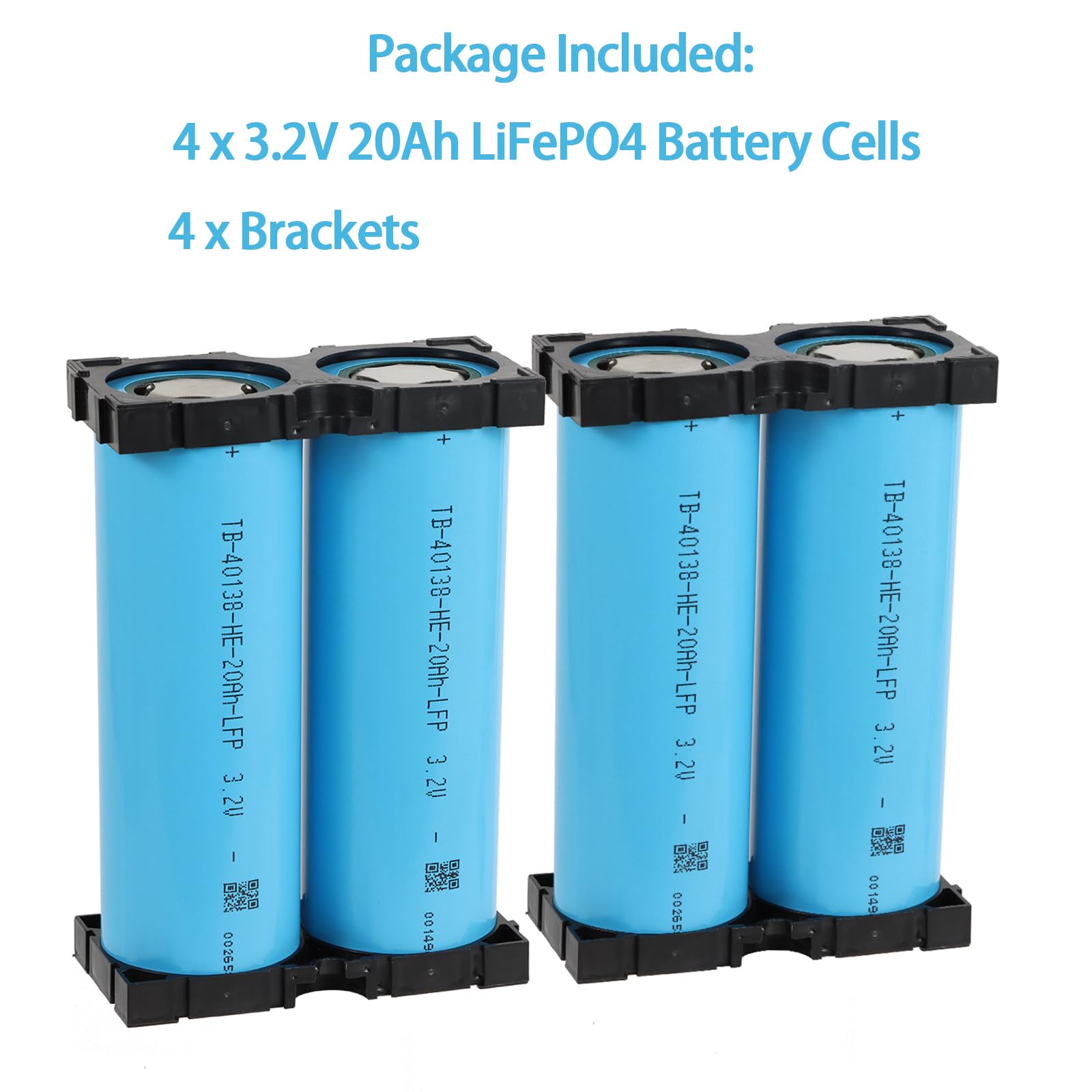

Bought 4 packs of these 20AH cells to build a 16s LiFePO4 e-bike battery. All of the batteries came packed well in foam. Each box includes plastic brackets. Those brackets fit together on 4 sides with small tongue & grooves. So you can build any size battery you want. (i.e. I’m building a 2x8 array but I could just as easily made a 4x4 battery.) This is a really nice feature that wasn’t in the listing. But i appreciate that the battery holders are included.All of the cells tested at 3.2VDC +/- 0.005. The cells are new and in good condition. They have no dents, scratches, or previous welds, and all of the lot numbers match up. Each 20AH cell weighs approximately one pound.I will report back once I receive the BMS and am able to fully test the cell capacity. But so far I’m very impressed![Update] 8 Months in now and these cells are still going strong in my e-bike. They perform to their rated capacity and current with zero issues. I am VERY happy with these cells. [/Update]
D**N
Nice quality
I made a 4-cell pack to power a small trolling motor. With the included brackets assembly was a breeze. I haven't tested the pack on the boat yet, but all cells are changing correctly. Should be a very versatile pack, that should easily jump start a small engine if neededI may even use it to power an inverter. Definitely would buy again.
